EXPERIENCE MORE VIVIDLY WITH QHD
QHD-QHD 2CH | Sony STARVIS | REAL-HDR | Wi-Fi | Built-in GPS | Time Lapse & Hyper Lapse-4X Efficiency Recording142º Wide Viewing Angle | Battery Discharge Prevention | Night-Vision | Mobile APP (Android/iOS) | Windows/Mac Viewer

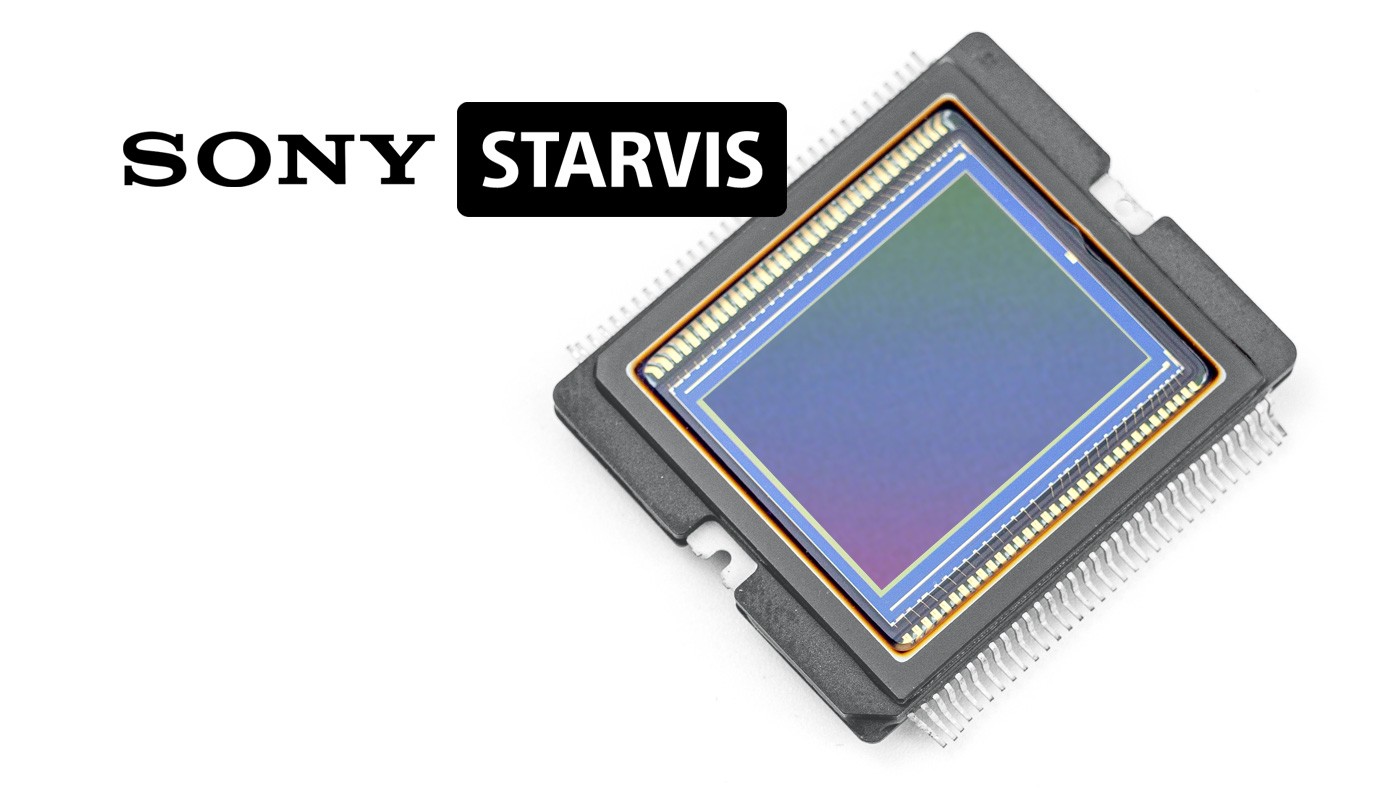

SONY EXMOR R STARVIS IMAGE SENSOR
PERFECT IMAGE PROCESSING EVEN IN LOW-LIGHT ENVIRONMENTS
The Sony Exmor R STARVIS Image Sensor applied to the ROADVUE RV9 provides rich colors and the optimal resolution.STARVIS technology improves Exmor R’s low light sensitivity by providing optimal image quality in visible ray andnear-infrared range, allowing clear imaging in low light environments.

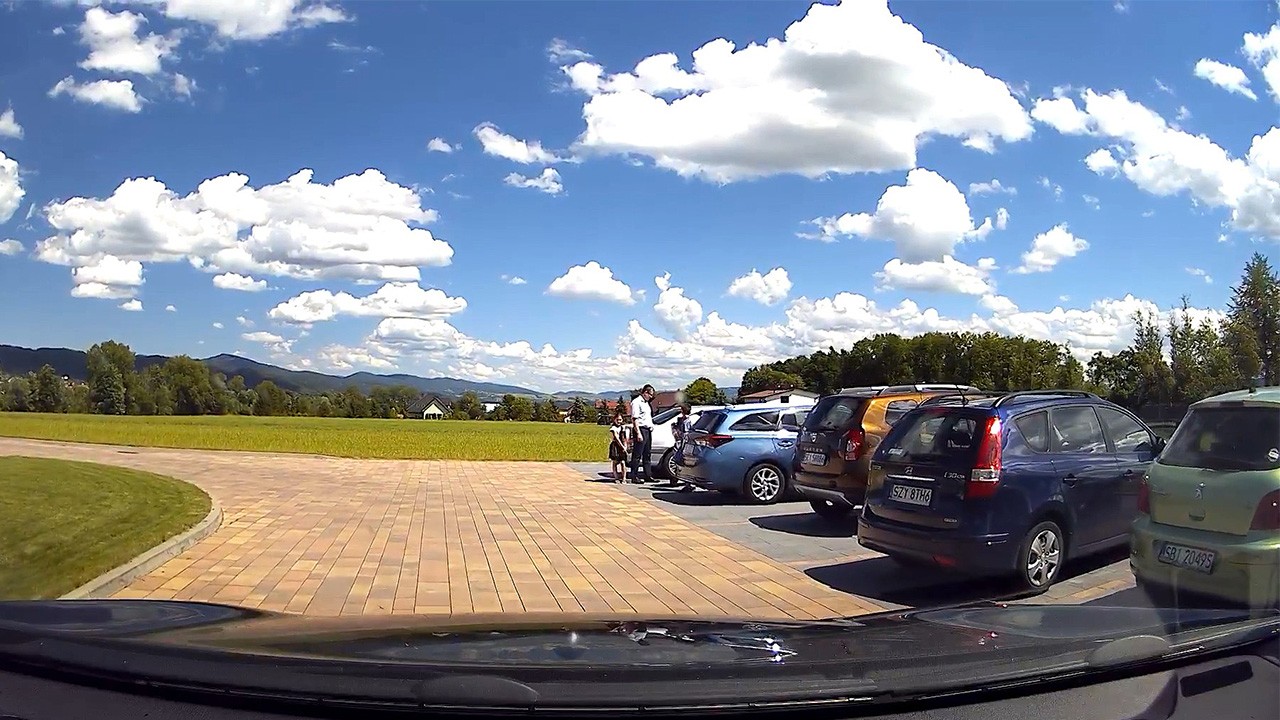

VIVID IMAGE CAPTURING AT QHD
1440P QHD & QHD 2CH
Capturing 4 times more clarity than HD resolution, the ROADVUE RV9 illustrates 1440p QHD front and 1440p QHDIts 2560x1440P resolution with 5.0M pixels and Sony STARVIS sensor deliver clearer and sharper images with significantly enhanced video quality, even in low-light conditions, and with little-to-no over-exposure across the entire image, making it an excellent choice for day and night use.

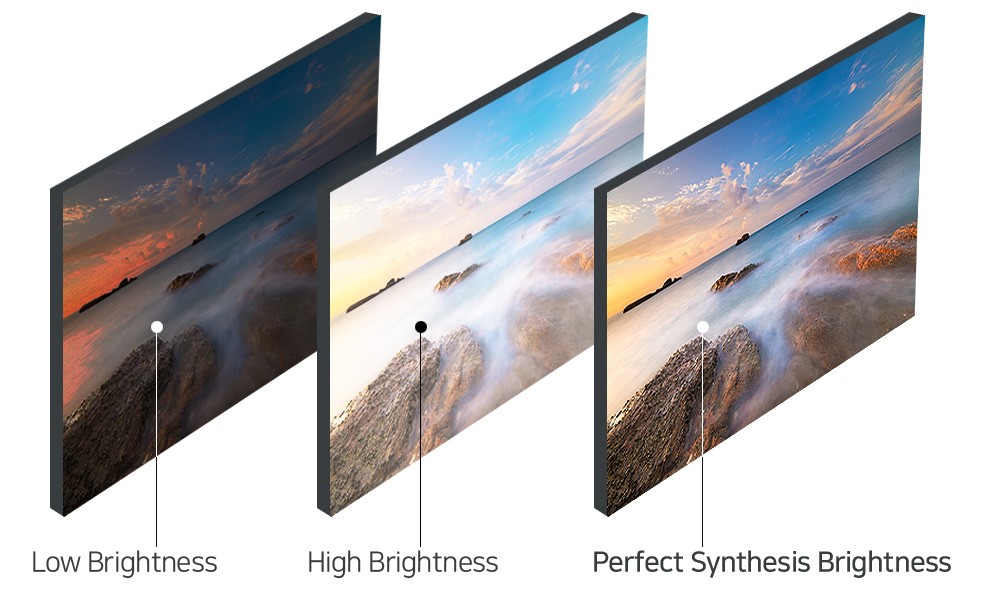

HIGH DYNAMIC RANGE (HDR)
CLEAR RECORDING QUALITY
WHEN DRIVING AT NIGHT
Real HDR technology is integrated to eliminate light blurring while driving at night, producing clear and vivid recordings even in challenging lighting conditions such as backlighting and tunnels.This advanced feature allows the ROADVUE dash cam to accurately capture the entire dynamic range of a scene, resulting in improved clarity and contrast across the entire video.

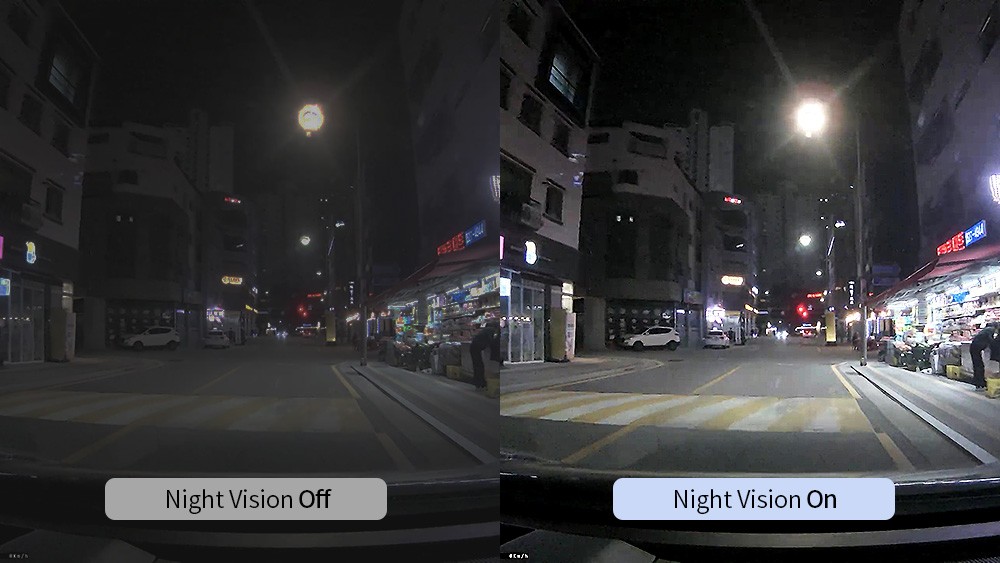

NIGHT VISION 2.0
AUTOMATIC EXPOSURE
Images from the videos recorded during nighttime driving on dark streets are generally difficult to make out.ROADVUE DASH CAMs the new ISP (Image Signal Processing) technology and the real-time image processing function to provide brighter images than our earlier models when recording at nighttime during Parking Mode.

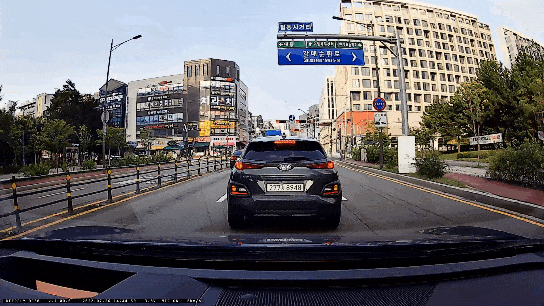

4X MORE RECORDING TIME
HYPER LAPSE
LONG DRIVE RECORDING WITH
- By compressing the recorded video, Hyper Lapse minimizes the memory space and saves 4 times more footage.
- when an event or impact occurs, recording frame rate switches automatically to 30 fps to provide clearer images of important moments.

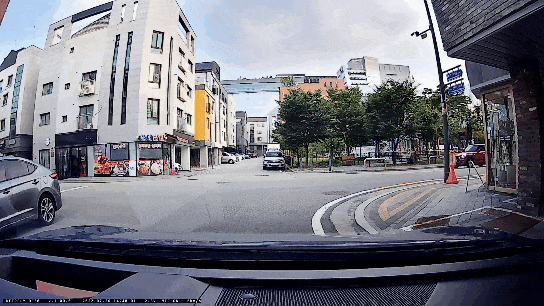

TIME LAPSE
LONG PARKING RECORDING WITH
- Time Lapse is a low-capacity recording method that minimizes the storage space by compressing and saving at 1fps while in Parking Mode.
- When an impact is detected during Parking Mode, it switches automatically to 30 fps to provide clearer images of important moments.
Mode | Normal | Time-lapse |
Capacity | 32GB | 32GB |
Fram | 30fps | 1fps |
Recording time | About 4H | About 48H |

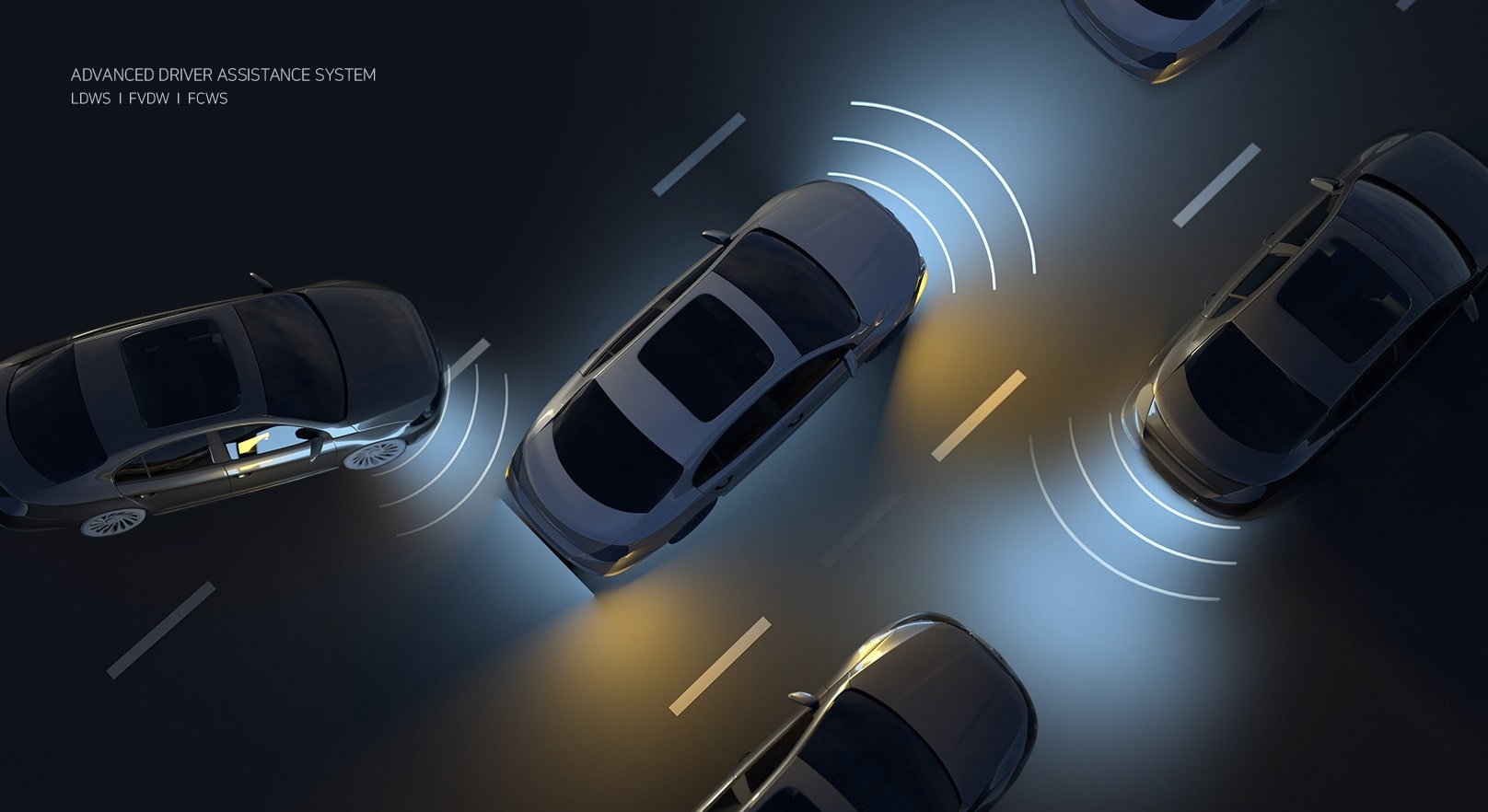

ADVANCED DRIVER ASSISTANCE SYSTEM
equipped with the Road Safety Warning System that provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW). It detects road markings and gives voice warnings to the drivers if the vehicle begins to stray from its lane or when it is at risk of an imminent crash.
LANE DEPARTURE WARNING SYSTEM
- If the driver falls asleep while driving or drives poorly, causing the car to depart the lane, it will notify about it through the preset warning sound.
LDWS Warning Sound
FRONT VEHICLE DEPARTURE WARNING
- Informs the driver when the vehicle in front has started to move, preventing delayed departure.
FVDW Warning Sound
FORWARD COLLISION WARNING SYSTEM
- The vehicle in front and alerts the driver in advance when reaching the range of safe breaking distance in order to prevent a collision.
FCWS Warning Sound

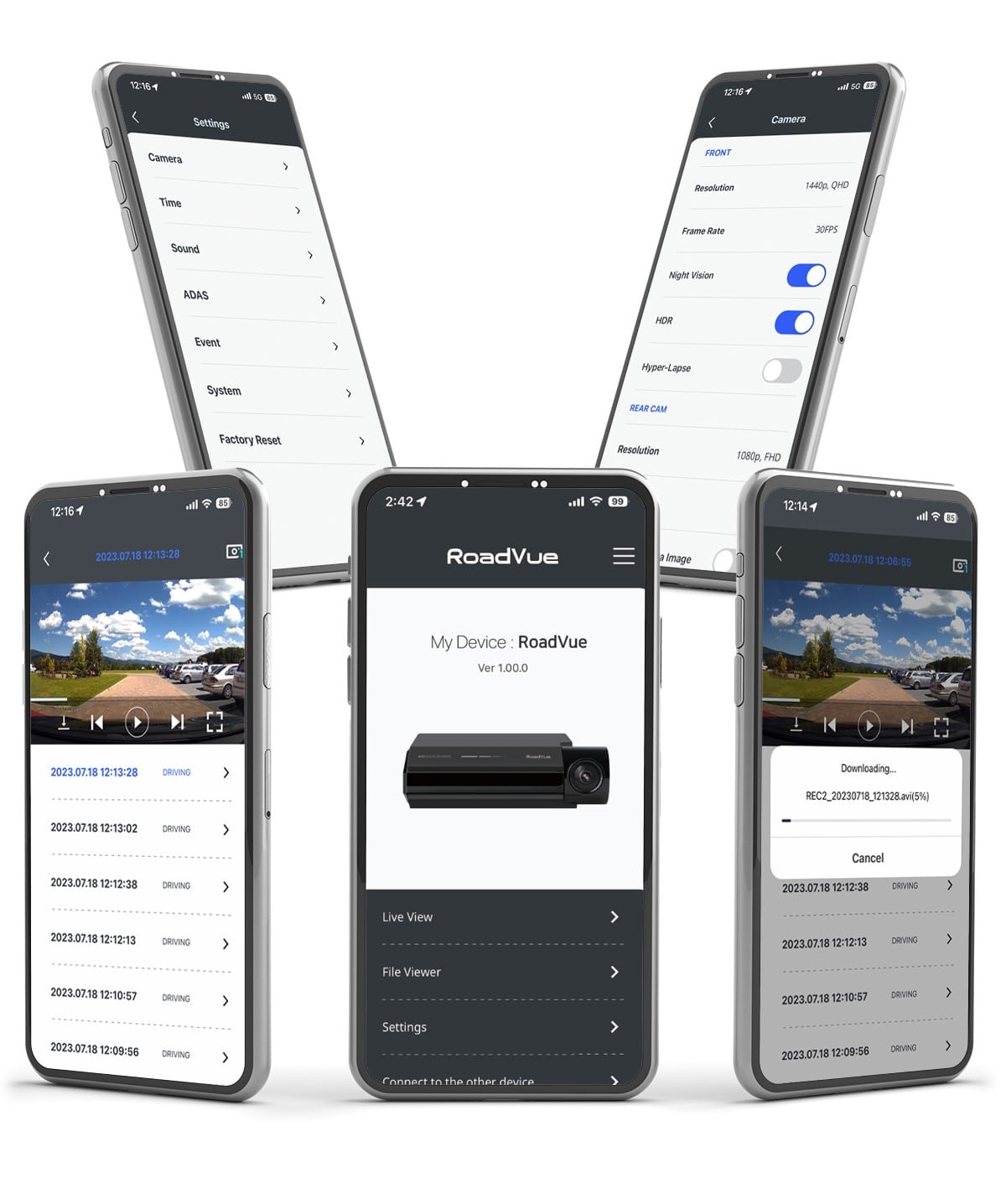

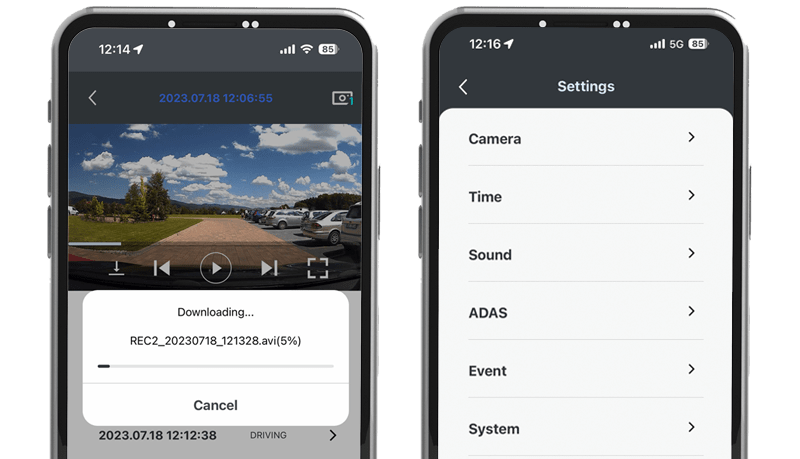

ROADVUE DASH CAM MOBILE APP
ROADVUE CONNECT mobile apps are your convenient go-to-app for easy access to your ROADVUE Dash Cam.
Save the hassle of going back home to know what you have recorded and check them on your smartphone.
Manage your dash cam through a mobile app, view real-time videos, easily download them, and effortlessly upload and share downloaded videos on social media and more.
Manage your dash cam through a mobile app, view real-time videos, easily download them, and effortlessly upload and share downloaded videos on social media and more.
REAL TIME VIDEO
You can view real-time video or play recorded videos on your smartphone through the ROADVUEmobile app.
QUICK DOWNLOAD
Now you can download all the video files you have recorded with your smartphone right away in your car, without having to take the SD card out or inserting it in your computer.
VARIOUS AUTONOMOUS RECORDING MODES
CONTINUOUS RECORDING MODE
This mode is activated automatically. when you start the engine. Recorded videos are saved in one-minute. segments with an auto-looping mechanism. Or use Hyper Lapse to store the footage in 1 frames per second.
MANUAL RECORDING
When pressing the Manual Recording button, the dash cam records and separately stores a few seconds of footage before (5-10s) and after (15-20s) that moment as a Manual Recording file protected from overwriting (limit before overwriting: up to max. 4% of total SD card storage).
EVENT RECORDING MODE
It will automatically start an Event recording when motion or impact is detected around the vehicle during both parking and driving mode after a collision registered by the 3-axis G-Sensor.
PARKING MODE
When parking, if built-in G sensors and motion detection sensors detect impact or movement, they record video. Or use Time Lapse to store the footage in 1 frames per second.This can be turned ON regardless of the Parking Mode used Time-lapse or Motion Detection.
CONVENIENT AND DIVERSE FUNCTION
BUILT-IN GPS
The GPS data in the ROADVUE RV9 can precisely pinpoint the vehicle’s location and routes on the map, while also displaying the driving speed. This helps to more accurately assess the situation and the circumstances in case of an accident.
VEHICLE BATTERY PROTECTION
In order to prevent a car battery from discharge during the parking mode, It has parking timer and voltage cut-off setting mode. If the voltage is lower than the set volume, it executes the voltage cut-off automatically for preventing the car discharging.
142º WIDE ANGLE LENS
The 142° angle lens offer a wide angle of view and minimize blind spots, ensuring all scenes that can be seen through the front windshield are completely recorded.
HIGH-TEMPERATURE PROTECTION
Built to endure both high and low temperatures in order to keep the device running smoothly. The high-temperature protection function makes the device automatically turn off in case of overheating, protecting both the device and the stored data.
FORMAT FREE 2.0
One of the recorded image on the SD card is not stored across into many pieces, due to sudden power loss, if the images are not perfectly finished recording, and the file can be played. The product consists of a stable system, users do not need to format the SD card regularly.
PC-VIEWER
The intuitive and easy-to-use interface of ROADVUE RV9 PC-viewer offers a simple and convenient way to watch your recorded videos on your PC or Mac. You can playback and download recorded videos, as well as check your route history and driving speed data.
PRODUCT SPECIFICATIONS
DETAILED SPECIFICATIONS
Camera
Front: 5M Pixels SONY STARVIS(IMX335) Sensor / Rear: 2M Pixels SONY STARVIS(IMX307) Sensor |
Resolution
Front: QHD (2560 x 1440) @ 30fps, Rear: QHD (2560 x 1440) @ 30fps |
Capacity
Micro SD Card 32GB~512GB |
Recording Modes
Continuous Recording / Event Recording / Manual Recording / Parking Recording / Audio Recording Hyper-Lapse(Driving Mode) @ 1fps / Time-Lapse(Parking Mode) @ 1fpsFrame rate may vary during Wi-Fi streaming. |
Angle
Front: Diagonal 142°, Horizontal 116°, Vertical 61°Rear: Diagonal 142°, Horizontal 115°, Vertical 62° |
Sensor
3-Axis Accelerometer G-Sensor (3D, ±3G) |
GPS
Bulit-in GPS |
Wi-Fi
External WiFi Dobgle(2.4GHz) |
Temperature
Operation temp : -20℃ – 70℃ (-4°F – 158°F)High temp cut off: Approx. 70℃ (158°F) |
Power
Input Power : DC 12/24V |
Application
Android 6.0, IOS 10.0 or higher : Firmware update supported |
Product Dimensions
Front: 104(W) x 64(D) x 30.25(H) mm (Weight 96g)Rear: 51(W) x 33.3(D) x 45.4(H) mm (Weight 28g) |
Certifications
KC, FCC, CE, RoHS, IC |
