QHD DUAL CHANNEL

2K QHD-QHD 2CH | SONY STARVIS | ECO(Energy Saving) | REAL-HDR | 5GHz Wi-Fi | 165º Wide Viewing Angle | Built-in GPS Time Lapse & Hyper Lapse | LBP | ADAS | Ultra Night-Vision | Mobile APP (Android/iOS) | Windows/Mac Viewe

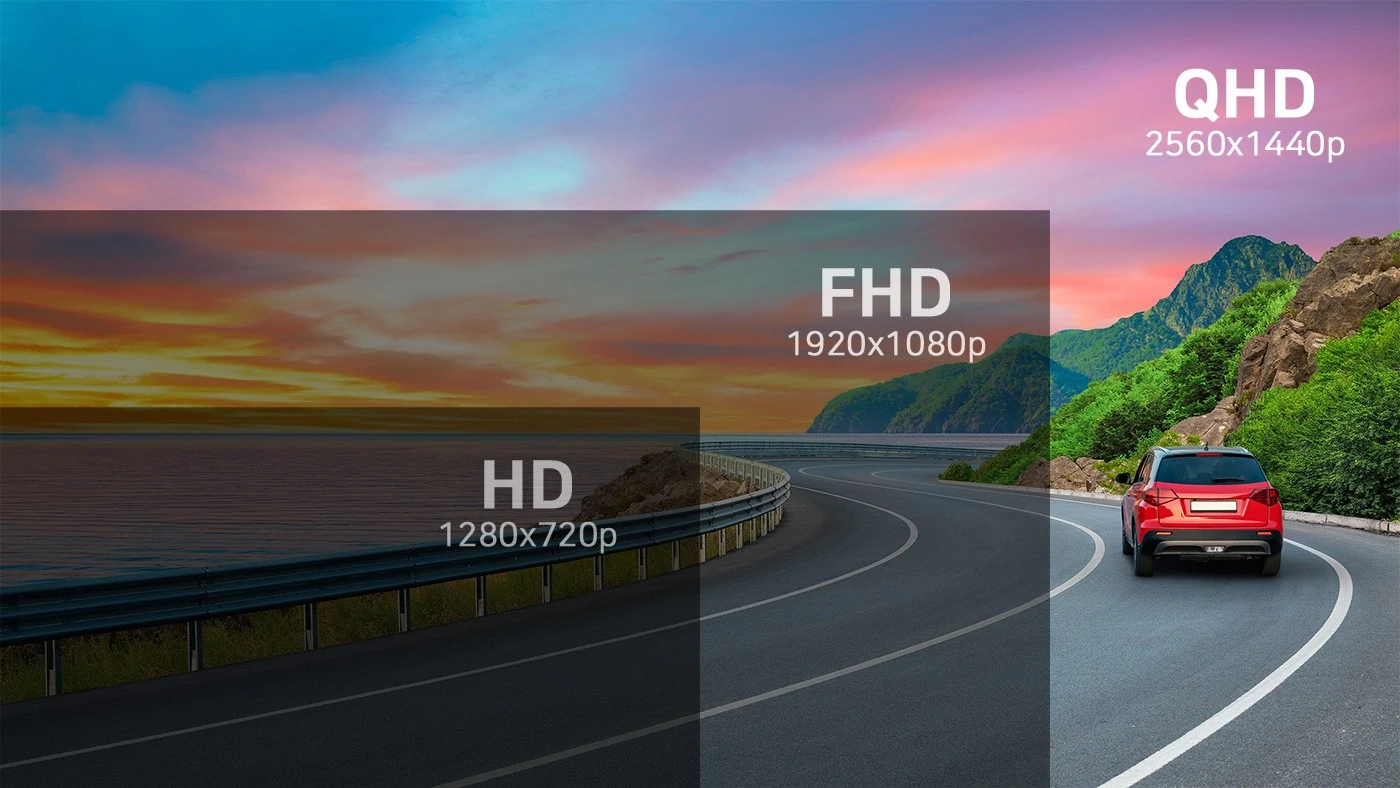

VIVID IMAGE CAPTURING AT QHD RESOLUTION

2560x1440P resolution with 5.0M pixels delivers clearer and sharper images.Capturing 4 times more clarity than HD resolution, the DEEPFLY DX10 illustrates 1440p QHD front and rear recording during both.

QHD CAPTURES EVERY MOMENT REALISTICALLY

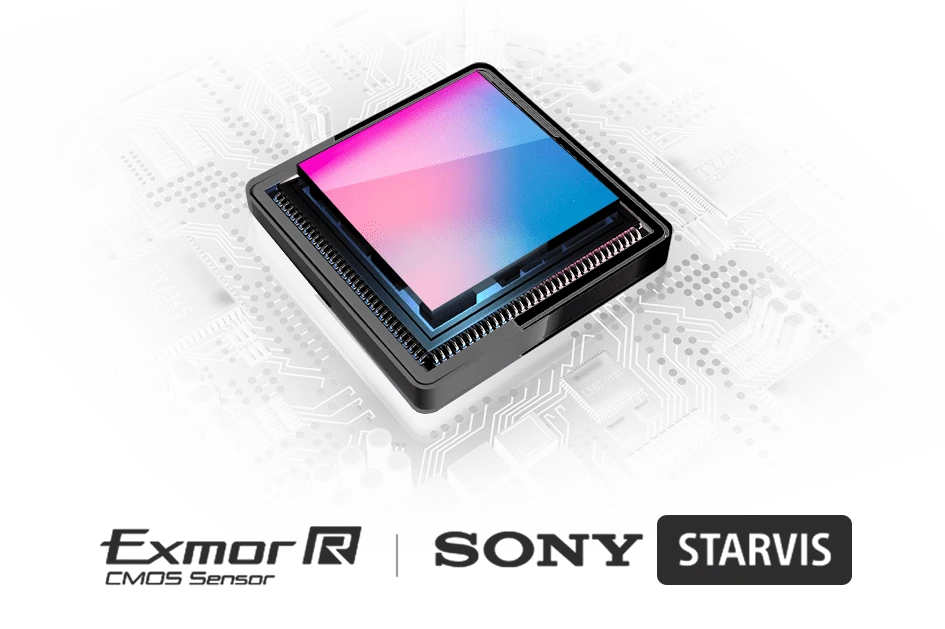

SONY EXMOR R STARVIS 2K

PERFECT IMAGE PROCESSING EVEN IN LOW-LIGHT ENVIRONMENTS
TThe SONY Exmor R STARVIS 5M image sensor provides optimal image quality in the visible and near-infrared range and improves low-light sensitivity to provide bright and clear QHD images even in dark environment

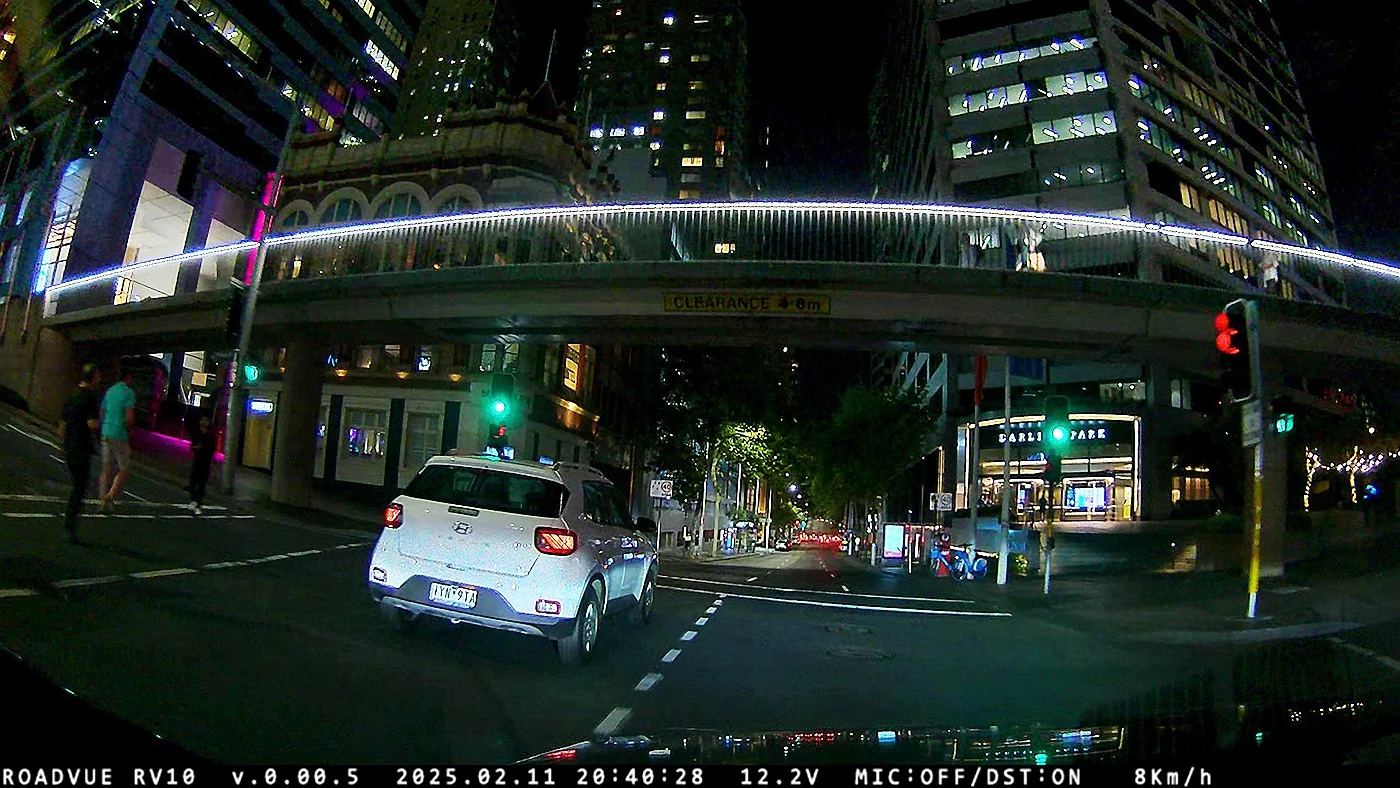

ULTRA NIGHT VISION

In dark environments such as unidentifiable alleys or parking lots, ULTRA NIGHT VISIONuses ROADVUE’s unique image optimization processing technology to record clear,eye-catching video in all situations. It provides optimal image quality in the visible and near-infrared rangesand improves low-light sensitivity to provide clear and bright images even in dark environments.
Ultra Night Vision
Vision – Night Off


THE VIDEO ENHANCEMENT TECHNOLOGY

REAR HDR

CLEAR RECORDING QUALITY WHEN DRIVING AT NIGHT
ROADVUE is equipped with the most advanced video enhancement technology to ensure the most vivid video recording in any situation.Sudden changes in front light exposure levels, such as when driving in bright sunlight, exiting a tunnel, or entering a dark environment, may result in overly bright or dark recordings.The HDR function removes excessive brightness from recordings and corrects color balance to produce sharp images.
HDR – ON
HDR – Off

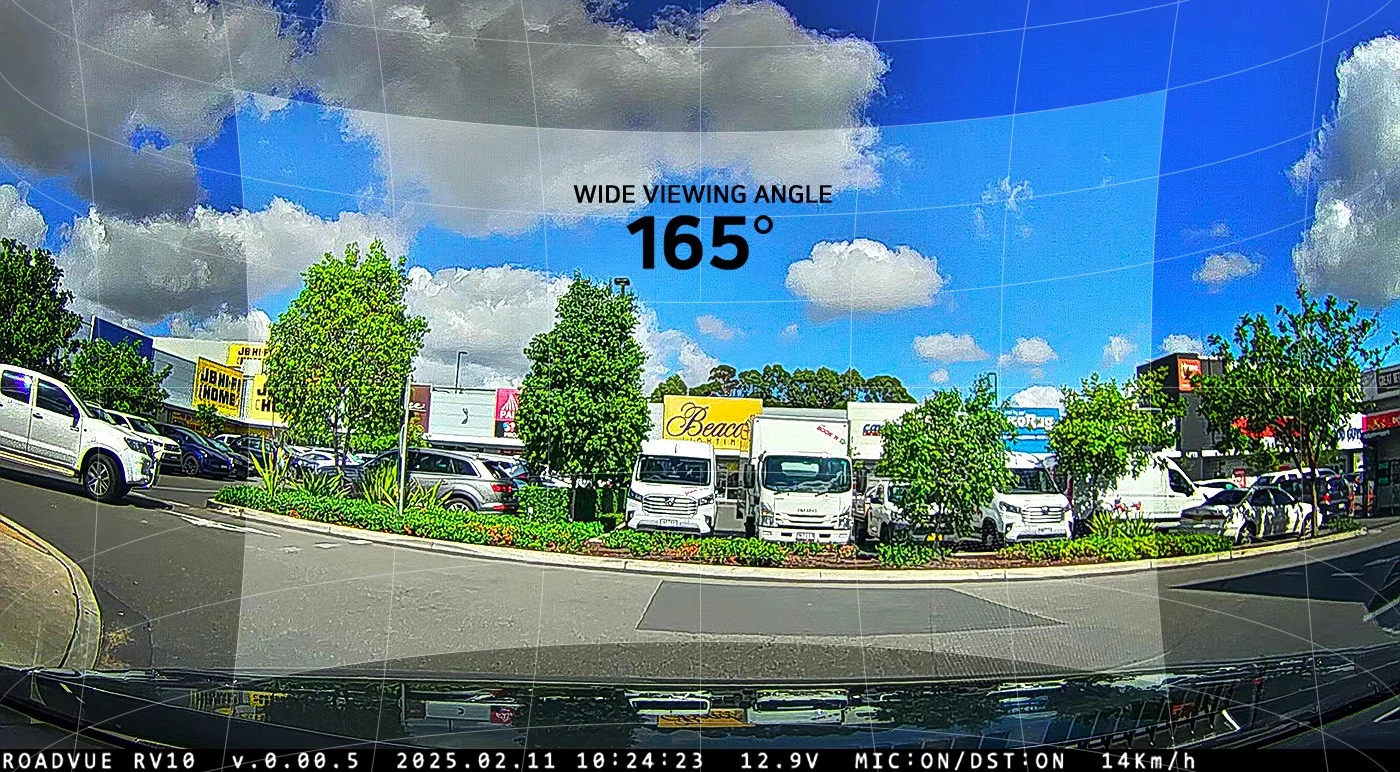

WIDE VIEWING ANGLE 165º

The 165-degree lens provides a wide viewing angle and minimizes blind spots, ensuring that every scene is recorded perfectly.

Dewarp image processing

Dewarp image processing technology for a realistic screen.By analyzing the script according to the characteristics of the lens with a wide angle of view,we adjusted the image distortion of the front and rear lenses to reduce distortion as much as possible.
Dewarp Technology Applied
Dewarp Technology Not Applied

ECO MODE

ULTRA-LOW POWER PARKING RECORDING
When setting the eco mode in parking mode, it switches to standby mode in parking mode to minimize power consumption.Eco mode: 12V conventional approx. 0.36W (conventional 4.5W), 875% reduction compared to conventional power consumption)
The eco mode Impact detection system, which is tuned to be 4 times more sensitive than conventional impact detection sensors, starts recording immediately when a light shock is detected during standby mode, which allows you to extend the dash cam usage time to the maximum with 875% less power consumption compared to conventional power consumption.

INTELLIGENT ULTRA-LOW POWER

HIGHT TEMPERATURE CUTOFF SYSTEM
With the smart parking recording function applied with ROADVUE's proprietary ITR technology, it automatically switches to ultra-power standby mode in high-temperature situations where the Dash cam is shut down, recording only when an impact occurs.This manages the temperature of the device and minimizes the AP temperature rise. When the temperature stabilizes, the system automatically changes to the previously set parking mode.

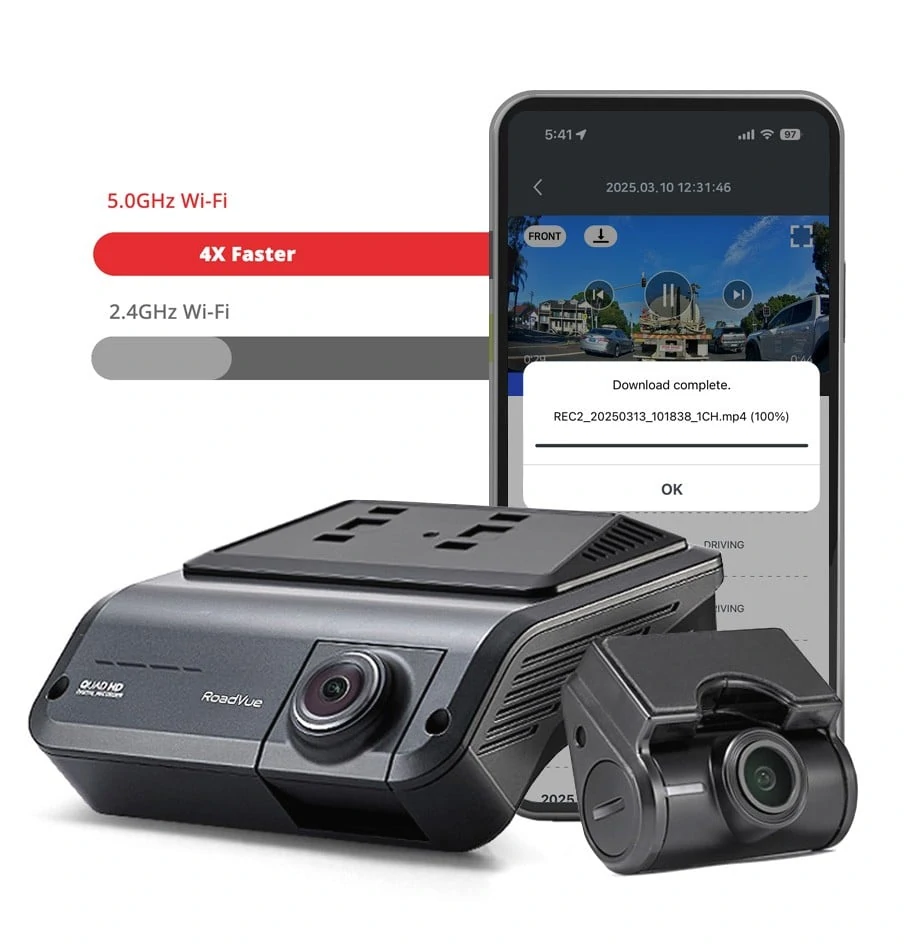

ULTRA-FAST 5GHz Wi-Fi

EASY WI-FI DEVICE PAIRING WITH

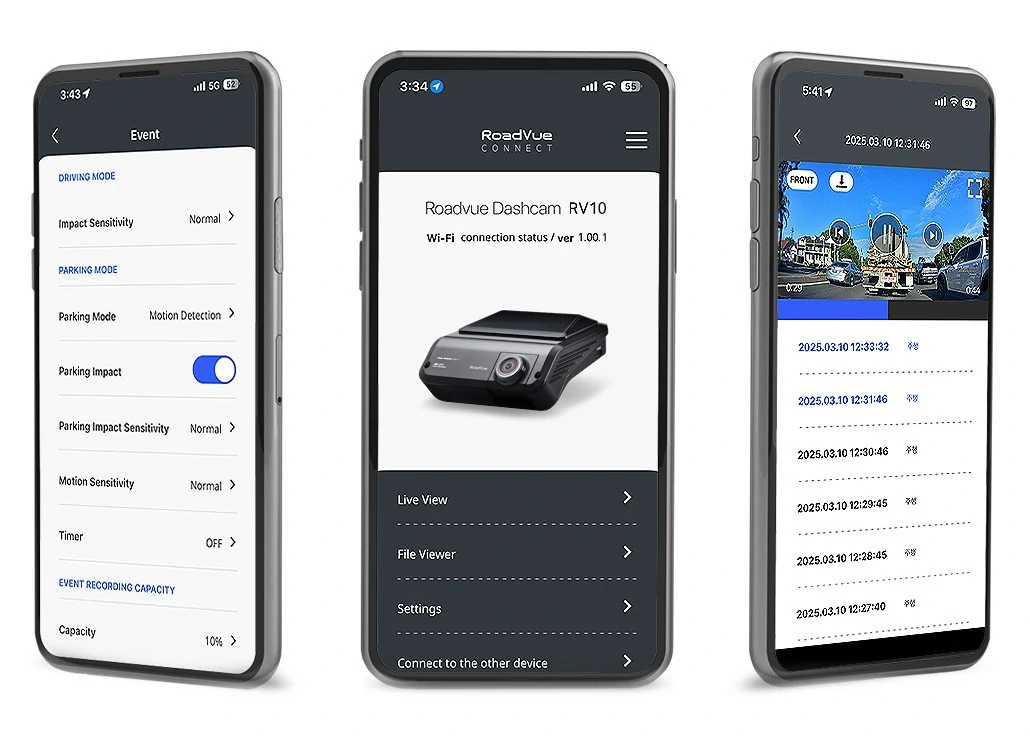

ROADVUE DASH CAM MOBILE APP

The free ROADVUE DASHCAM dedicated APP can play, download, and save videos stored in the DASHCAM directly to your phone, and upload them directly to social media. You can check real-time videos, automatically update firmware, control settings on the DASHCAM, and perform various other functions through the app.

4X MORE RECORDING TIME

TIME-LAPSE

LONG PARKING RECORDING WITH
In parking mode, it records video at 1 frame, allowing continuous recording of parking surveillance for long periods of time without increasing power consumption.When an impact is detected, the recording frame rate automatically switches to 30 frames, providing clearer video of important moments.

HYPER-LAPSE

LONG DRIVE RECORDING WITH
Don’t worry about your long-time recordings being overwritten. Hyperlapse records video at 1 frame per second in driving recording mode, saving over 4x more time and footage than normal driving mode.If an impact occurs, the recording frame rate automatically switches to 30 frames per second, providing even clearer footage of the crucial moment.

VARIOUS AUTONOMOUS RECORDING MODES

CONTINUOUS RECORDING MODE

This mode is activated automatically. when you start the engine. Recorded videos are saved in one-minute. segments with an auto-looping mechanism. Or use Hyper Lapse to store the footage in 1 frames per second.

EVENT RECORDING MODE

It will automatically start an Event recording when motion or impact is detected around the vehicle during both parking and driving mode after a collision registered by the 3-axis G-Sensor.

MANUAL RECORDING

When pressing the Manual Recording button, the dash cam records and separately stores a few seconds of footage before (5-10s) and after (15-20s) that moment as a Manual Recording file protected from overwriting (limit before overwriting: up to max. 4% of total SD card storage).

PARKING MODE

When parking, if built-in G sensors and motion detection sensors detect impact or movement, they record video. Or use Time Lapse to store the footage in 1 frames per second. This can be turned ON regardless of the Parking Mode used Time-lapse or Motion Detection.

ADAS

ADVANCED DRIVER ASSISTANCE SYSTEM
equipped with the Road Safety Warning System that provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW). It detects road markings and gives voice warnings to the drivers if the vehicle begins to stray from its lane or when it is at risk of an imminent crash.

LDWS

LANE DEPARTURE WARNING SYSTEM
If the driver falls asleep while driving or drives poorly, causing the car to depart the lane, it will notify about it through the preset warning sound.

FVDW

FRONT VEHICLE DEPARTURE WARNING
Informs the driver when the vehicle in front has started to move, preventing delayed departure.

FCWS

FORWARD COLLISION WARNING SYSTEM
The vehicle in front and alerts the driver in advance when reaching the range of safe breaking distance in order to prevent a collision.

BUILT-IN GPS

COMPREHENSIVE DRIVING DATA THROUGH
The GPS data in the ROADVUE RV series can precisely pinpoint the vehicle’s location and routes on the map, while also displaying the driving speed. This helps to more accurately assess the situation and the circumstances in case of an accident.

FORMAT FREE 2.0

HIGH-EFFICIENCY VIDEO CODING FORMAT
One of the recorded image on the SD card is not stored across into many pieces, due to sudden power loss, if the images are not perfectly finished recording, and the file can be played. The product consists of a stable system, users do not need to format the SD card regularly.

Cable Cover Mounts (Optional)

The cable cover mount helps organize power cables, rear cables, and others neatly without exposing them to the outside.It is a new accessory option that adds a touch of sophistication to high-end RV11 systems.

CAMERA OPTIONS

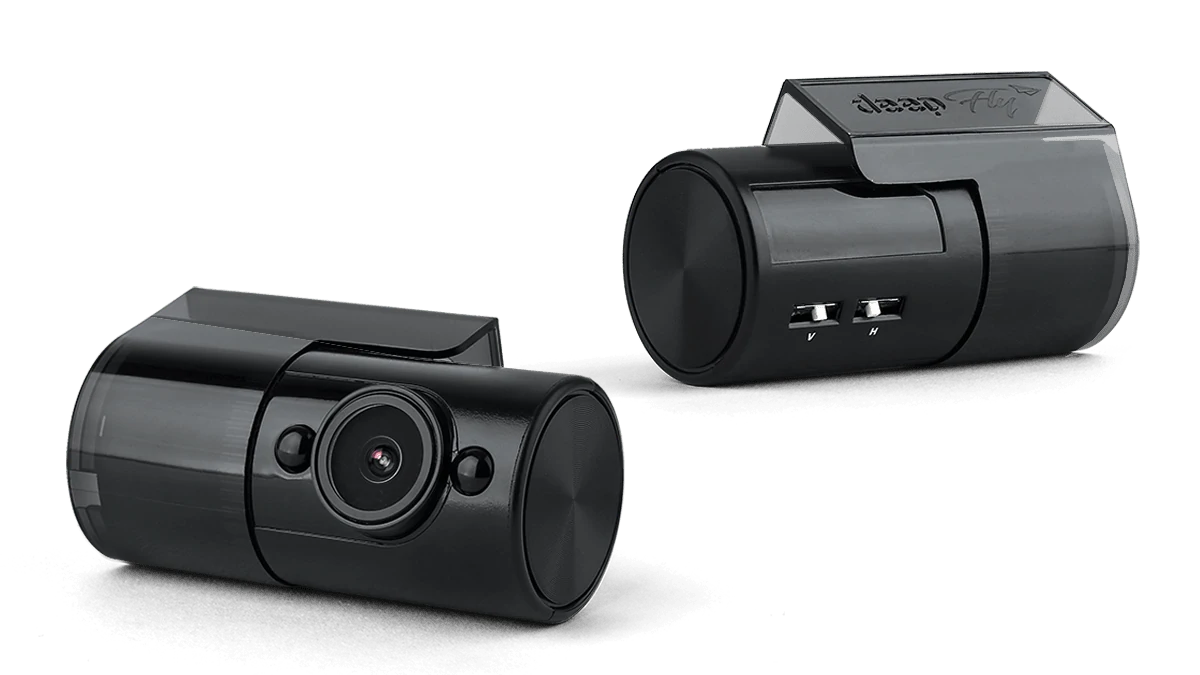

IR(Interior IR) CAMERA
Interior Infrared Camera2.0 megapixels Sensor1080p@ FULL HD

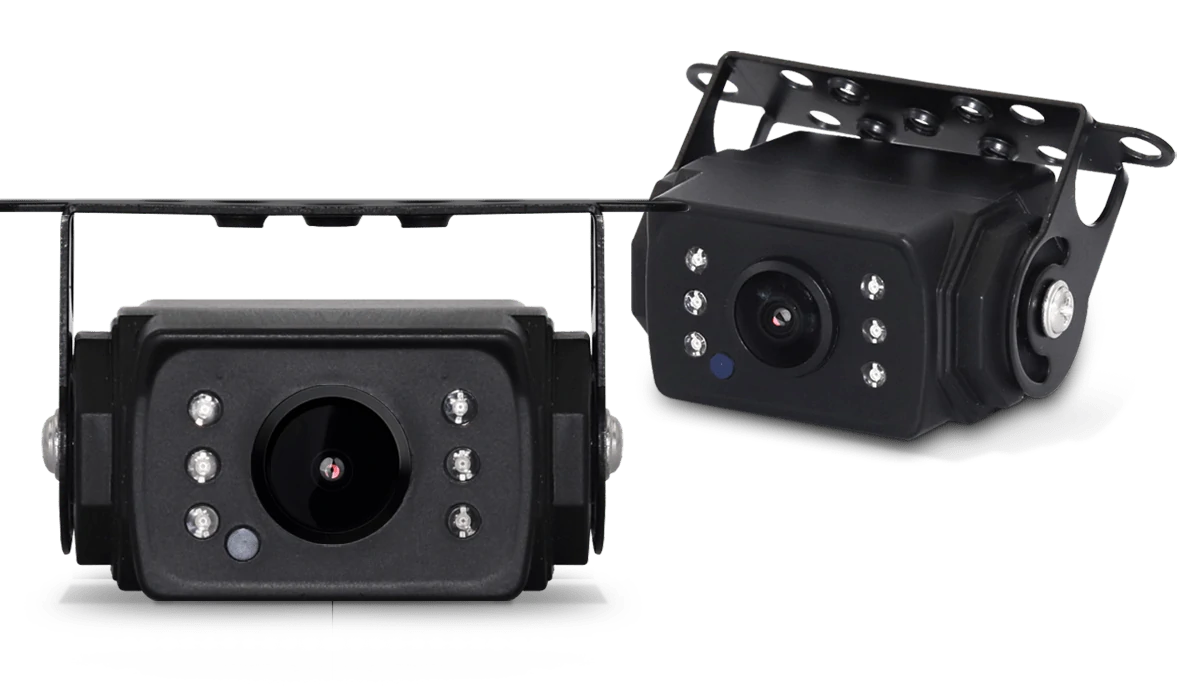

EXTERIOR REAR CAMERA
Exterior Waterproof Camera(IP69K Rating) 2.0 megapixels Sensor 1080p@ FULL HD

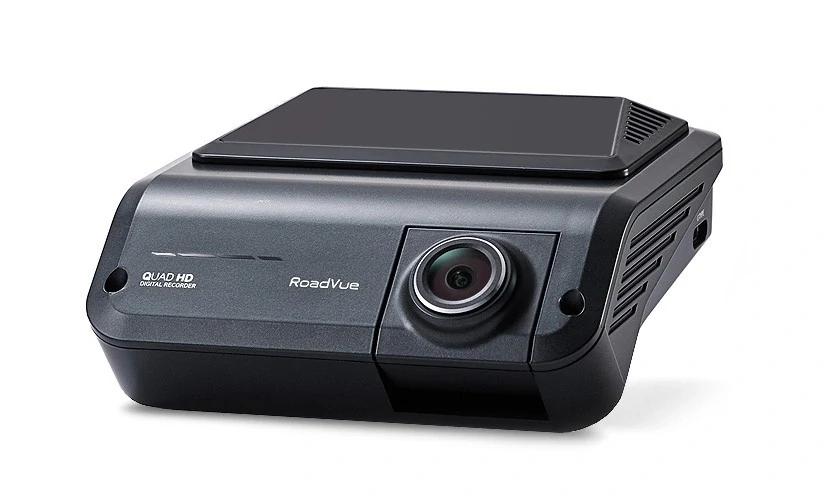

PRODUCT SPECIFICATIONS

DETAILED SPECIFICATIONS

Camera Front: 5M Pixels SONY STARVIS(2K) Sensor / Rear: 5M Pixels SONY STARVIS(2K) Sensor
Resolution Front: 2K QHD (2560x1440p) @ 30fps, Rear: 2K QHD (2560x1440p) @ 30fps
Capacity Micro SD Card 32GB~512GB
Recording Modes Continuous Recording / Event Recording / Manual Recording / Parking Recording / Audio Recording ECO Mode : Starts recording immediately when a light shock is detected during standby mode Hyper-Lapse(Driving Mode)/Time-Lapse(Parking Mode) : 1fps
Angle Front: Diagonal 165°, Horizontal 139°, Vertical 91° Rear: Diagonal 142°, Horizontal 115°, Vertical 62°
Sensor 3-Axis Accelerometer G-Sensor (3D, ±3G)
GPS Bulit-in GPS
Wi-Fi External WiFi Dobgle (5.0GHz)
Power Input Power : DC 12/24V
Temperature / Power Operation temp : -20℃ – 70℃ (-4°F – 158°F) High temp cut off: Approx. 70℃ (158°F)
Application Android 6.0, IOS 10.0 or higher : Firmware update supported
Product Dimensions Front: 104(W) x 64(D) x 30.25(H) mm (Weight 96g)Rear: 51(W) x 33.3(D) x 45.4(H) mm (Weight 28g)

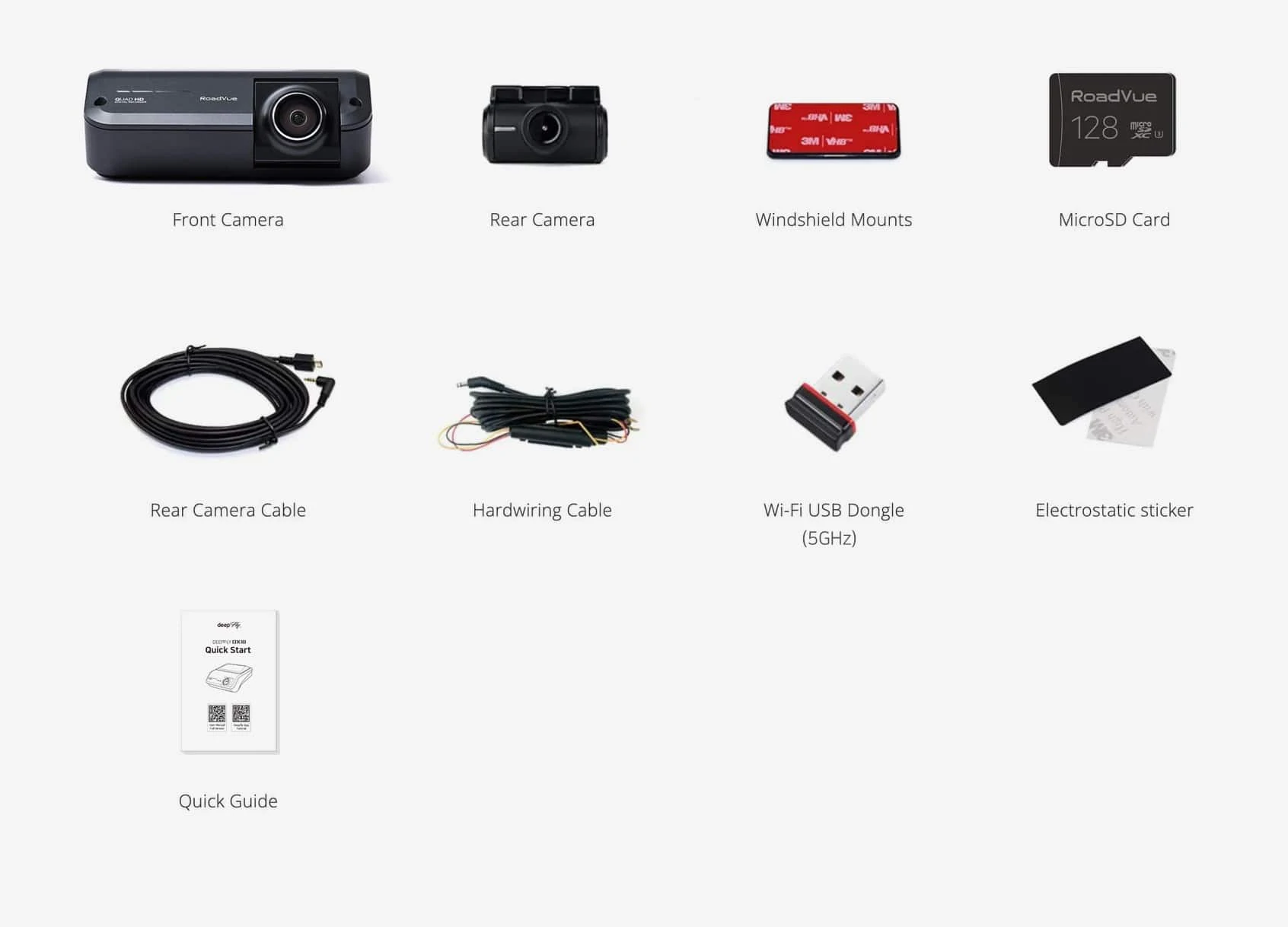

Package Front camera(Mount) / Rear camera / Microsd card / Wi-Fi USB dongle(5GHz) / Rear camera cable / Hardwiring cable / Quick guide / Electrostatic sticker
Certifications KC, FCC, CE, RoHS, IC
